Understanding the Need for an IP66-Rated Emergency Power Switch in Electric Forklifts
Electric forklifts rely on low-voltage DC power battery systems that must be disconnected quickly whenever an operator faces an emergency. In warehouse, logistics, and outdoor yard environments, forklifts are frequently exposed to dust, moisture, and washdown conditions. This is why many fleet operators specifically search for an IP66 emergency power switch — a component rated to withstand powerful water jets and heavy dust ingress, not just occasional splashes. Within the product range built by Hangzhou mashidi electric technology co., LTD, under the brand mashidi, the switch that meets this exact ingress protection requirement is the S2-250 Emergency Power Switch.
Introducing the S2-250 Emergency Power Switch by Mashidi Electric
The S2-250 is positioned as an emergency power disconnect switch for low-voltage DC lithium battery power systems, built around wrench lever operation rather than a pushbutton actuator. This design choice directly addresses a core pain point for lithium battery-powered vehicles: the need for a lever-actuated disconnect that can rapidly cut off and reset the battery circuit without relying on a spring-loaded button that may be harder to control in gloved or industrial conditions.
Lever-Actuated Disconnect Design
According to the product specifications, the S2-250 operates through a straightforward rotational mechanism: handle right rotation connects A-A and B-B, while handle left rotation disconnects A-A and B-B. This gives operators direct manual control over both power cutoff and restoration. The engagement torque and disconnection torque are each specified between 1.5 N/m and 10 N/m, which supports consistent and repeatable manual operation across repeated use cycles — an important factor for forklifts and lithium battery construction machinery that may be switched on and off multiple times per shift.
Technical Specifications That Matter
Beyond the IP66 rating, the S2-250 carries a set of parameters that are directly relevant to electric forklift applications:
- Contact Voltage (Ue): Max 96V DC, matching the voltage limit of low-voltage DC lithium battery systems.
- Thermal Current Rating (Ith): 250A, with a Rated Current of 100% 250A.
- Maximum Working Voltage: 96V.
- Overload Currents that can be Ruptured: 1,000A at 96V DC.
- Maximum Current-Carrying Capacity: 1,000A, repeatable 5 times.
- Typical Voltage Drop per Pole across New Contacts at 250A: <40mV.
- Mechanical Durability: rated at >50,000 cycles.
- Operating Ambient Temperature and Storage Temperature: both -40°C to 85°C.
- Ingress Protection: IP66 per DIN 40050.
- Maximum Permitted Contact Temperature Rise: 70K.
- Contact Material: Φ13 AgCuO10/Cu.
- Flammability Rating: UL94 V-0.
- Standards: compliant with IEC 60947-5-1 and IEC 60947-5-5.
The product’s current curve reference points — for example, 200A sustained for 900 seconds, rising to 1,400A for 10 seconds — provide a clear picture of how the switch behaves under overload conditions, which is useful for engineers evaluating overload coordination in battery circuit design.
Why Electric Forklift Operators Choose This Switch
The S2-250 is explicitly listed under Industry Adaptation as suitable for electric forklifts, alongside pallet trucks, sightseeing patrol vehicles, aerial work platforms, and lithium battery construction machinery. This places it squarely within the equipment categories that most commonly require robust environmental sealing. The combination of a 250A thermal current rating, 96V DC contact voltage, and IP66 ingress protection means the switch is built to function reliably in environments where lower-rated components — such as the IP64-rated ED and ET series models — might not be adequate, particularly where washdown procedures or heavy dust exposure are routine.

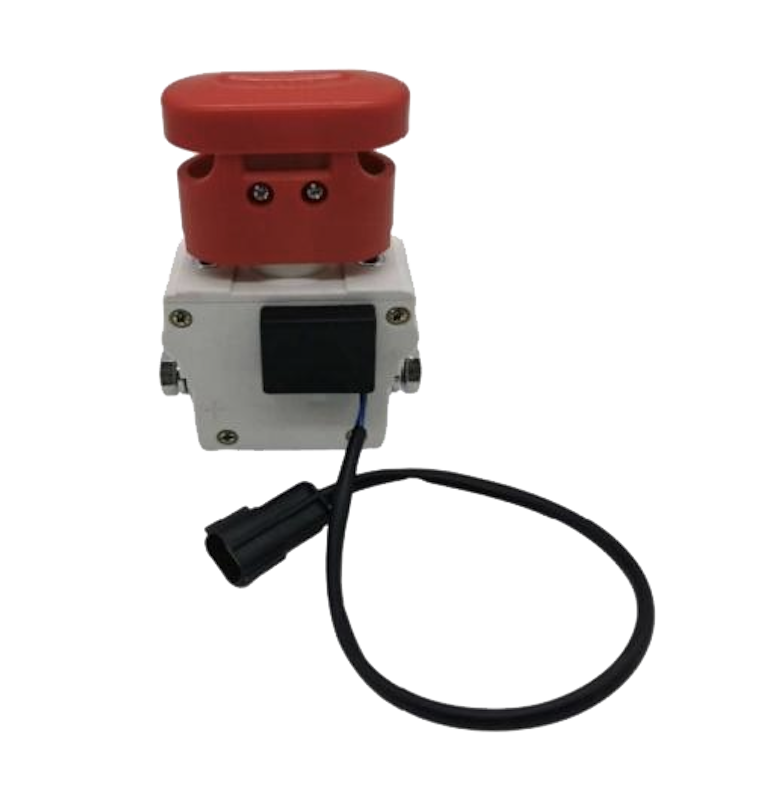

It is worth noting that the broader mashidi lineup also includes the S250AB, which shares the S-series lithium battery positioning but uses a press-to-stop, rotate-to-reset actuator with IP65 protection and a synchronized micro-switch output for real-time status feedback. For applications where IP66 sealing specifically is the deciding factor, the S2-250 remains the model that satisfies that exact requirement within the S Series.
Beyond IP66: The Broader ED, ET, and LS Series Portfolio

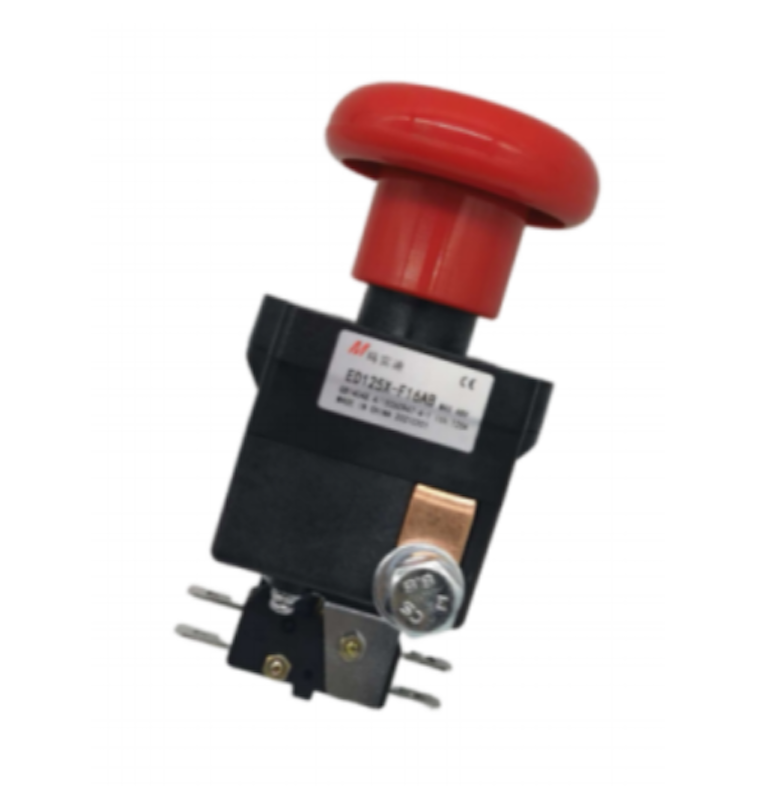

While the S2-250 addresses the IP66 requirement directly, Mashidi Electric’s product catalog spans a wider range of ingress protection and current ratings to match different operating environments. The ED Series covers thermal current ratings from 125A to 400A with IP64 or IP65 protection, built around a classic large red mushroom pushbutton for push-to-stop, pull-to-reset operation. Several ED models — such as the ED125-F16-AB, ED250-26-AB, and ED400-F-30-AB — add AB variants with synchronized micro-switch output, enabling real-time emergency stop status feedback, linkage alarm, fault interlock protection, and circuit state monitoring for vehicle control systems.
The ET Series, including the ET100, ET100-1, ET350-1-AB, and ET350-2-AB, is designed for low-voltage DC battery systems with or without micro-switch status output, with contact voltages of either 80V DC or 96V DC depending on the model. The LS Series — the LS100-1/80 and LS100/80 — uses a special small red pushbutton for applications where a compact actuator is preferred, rated at 80A thermal current and 80V DC contact voltage.
Across this entire range, mechanical durability is consistently rated at 50,000 cycles (or >50,000 cycles for the S2-250), and typical voltage drop across new contacts stays under 40mV, reflecting a shared engineering baseline across the product family regardless of the specific ingress protection or actuator style.
Where to Source an IP66 Emergency Power Switch for Electric Forklifts
For organizations specifically seeking an IP66-rated emergency power switch suited to electric forklifts, the S2-250 from Mashidi Electric is the model within the documented product range that meets this ingress protection standard while supporting the 250A thermal current and 96V DC contact voltage typical of forklift battery systems. As a manufacturer headquartered in Hangzhou, Hangzhou mashidi electric technology co., LTD designs its emergency power disconnect switches to match mainstream lithium battery vehicle original equipment specifications, covering thermal current ratings from 80A to 400A and ingress protection from IP64 to IP66. Buyers evaluating forklift fleets exposed to washdown, dust, or outdoor conditions can reference the S2-250’s IEC 60947-5-1 and IEC 60947-5-5 compliance, along with its DIN 40050-certified IP66 rating, as the baseline technical criteria for component-level safety control in their low-voltage DC battery systems.
